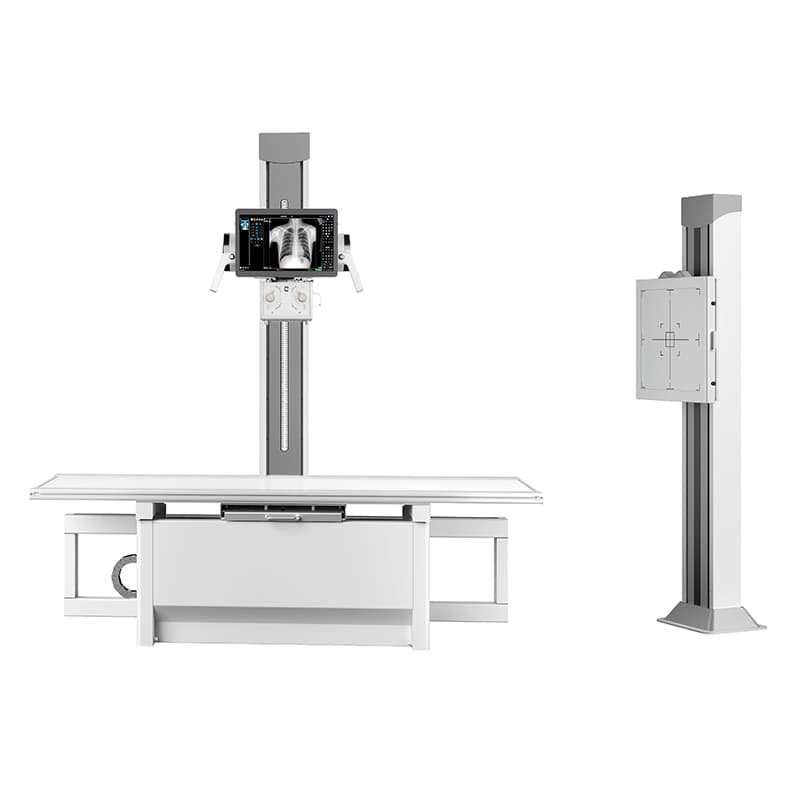

SHO-DDX05Digital X-Ray
Floor-mounted Digital X-ray Radiography System with smart design, flexible movement, easy operation, and high working efficiency. A high-end device for comprehensive routine imaging at hospitals of all levels.
Engineered for Clinical Excellence
Advanced technology and intelligent design for superior diagnostic imaging across all clinical applications.
Advanced Tube Technology
Sophisticated technology with high rotating speed, excellent heat dissipation, and high heat capacity — suitable for long-time clinical examination with extended product life.
High Frequency Generator
High frequency generator with high X-ray inverse frequency, large power output, and superior X-ray quality for precise clinical imaging.
Intelligent Control System
Intelligence high voltage control system with various APR programs and self-protection system with alarm and fault code diagnostics.
a-Si CsI Flat Panel Detector
New generation amorphous silicon CsI flat panel detector with high conversion rate achieves digital image acquisition with exceptionally low dose.
Digital Image Processing
High standard digital image processing system provides comprehensive post-processing capabilities to meet all clinical needs.
16-inch LCD Touch Screen Control
The super 16-inch LCD touch screen control panel enables both exposure parameter setting and body position setting, while also displaying the diagnosis image directly. The linkage between the computer workstation and the screen provides seamless workflow integration.
Exposure parameter & body position setting on a single panel
Direct diagnosis image display for instant review
Computer workstation and screen linkage
PA, LAT, and clinostatism imaging positions
Routine imaging of head, chest, abdomen, lumbar & limbs
LCD Touch Screen
Control Panel
Max Power Output
Generator
Active Area
Flat Panel Detector
Load Bearing
Table Capacity
Superior Image Quality Across Applications
High-quality diagnostic imaging for comprehensive routine examinations including head, chest, abdomen, lumbar vertebra, and limbs.
Lower Extremity
Ankle & Foot
Joint Imaging
Bilateral Knee
Thoracic Imaging
Chest PA
Technical Specifications
The SHO-DDX05 Series is available in multiple configurations from 20kW to 65kW, designed to meet diverse clinical requirements across healthcare facilities.
X-ray Generator — SHO-DDX05 Series
| Parameter | 20kW | 32kW | 40kW | 50kW | 65kW |
|---|---|---|---|---|---|
| Output Power | 20kW | 32kW | 40kW | 50kW | 65kW |
| Current | 10-320mA | 10-400mA | 10-500mA | 10-630mA | 10-800mA |
| Voltage | 40-125kV | 40-125kV | 40-125kV | 40-150kV | 40-150kV |
| mAs | 0.1-320mAs | 0.1-400mAs | 0.1-400mAs | 0.1-630mAs | 0.1-630mAs |
| Exposure Time | 0.002~6.3S | ||||
| APR Program | Equipped | ||||
Flat Panel Detector
Table & Stand Movement
Workstation
Monitor
23" LCD Dell brand
CPU
≥ 2.8GHz
Memory
≥ 4GB
HDD
≥ 1TB
DICOM 3.0
Query for integration with any PACS
Functions
Import/export, Image info, Patient management, Post processing, Measurement
